Connex +FracPlane Alpha：射孔作業黃金搭檔

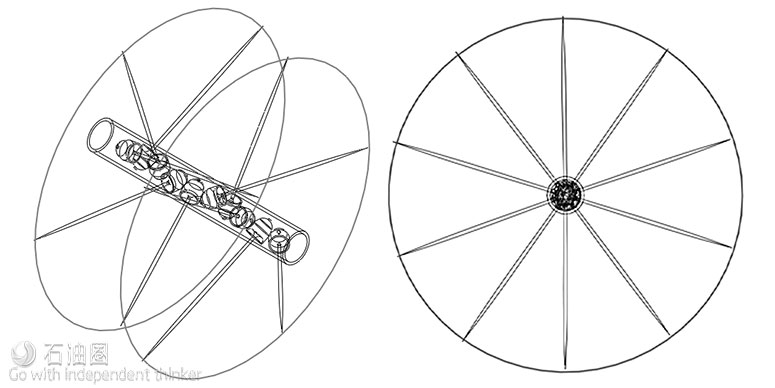

The patented FracPlane system uses angled perforations to place fracture initiation points on the same plane near wellbore. By connecting transversely to the fracture planes, every hole feeds the fracture, and variations due to hole size are minimized. For longitudinal fracture planes we recommend orienting your perforation clusters.

Shot configurations available: 2, 3, 4, 5, 6, 7, 8, 10, 12, and 14 shot designs. This system is optimized to be run without orientation.

APPLICATION

1.Limited Entry Perforating Design
2.Conveyable on Wireline, Braided Slickline, and Tubing Conveyed
3.Unconventional Reservoirs
4.Available Carrier sizes: 3 1/8” and 3 3/8”

Once the number of shots in a cluster is set, each FracPlane? system provides the best opportunity to place a perforation in the preferred fracture direction, and balances the flow area above and below the well. Each perforation feeds your frac, and the well can produce through each perf.

FracPlane、 works better with CONNEX charges. Every production run of CONNEX charges is qualified in stressed rock targets so that every tunnel connects to the frac plane, every time.

Connex Reactive Perforating

CONNEX、 Reactive Perforating delivers clean, open tunnels independent of rock type. Every tunnel receives its own cleaning action, independent of other perforations, resulting in a much greater percentage of clean tunnels and ideal flow path between undamaged reservoir and the wellbore.

CONNEX products deploy in standard hardware. Gun performance and wellbore integrity are unaffected. Penetration into stressed rock is equivalent to GEODynamics’ industry-leading RAZOR? charges.

HOW IT WORKS

GEODynamics’ CONNEX charges use reactive metals create a secondary reaction to clear out the compaction zone in a perforating zone. Patented charge liner material deposited along the tunnel reacts exothermically when introduced to heat and pressure. This reaction creates significant pressure within and around the tunnel, breaking up and expelling the crushed zone compacted debris back into the well bore. In sufficiently competent rock, fractures are also formed at the tunnel tip.

SYSTEM ADVANTAGES

1.?Field proven to Eliminate or Dramatically Reduce Acid Volumes
2.?More Efficient Hydraulic Fracture Stimulation (treating rates + pressures)
3.?More Efficient Limited Entry Perforation
4.?Maximum Impact Workovers
5.?Profitable Completion of Heterogeneous Pay Zones
6.?High Performance Injection Wells
7.?Maximum Return from Mature Assets
8.?Multi-String Applications

TUNNELS AND TIPS

Clean tunnels and fractured tips Absolutely. What better place to initiate an acid matrix or fracture stimulation CONNEX charges reduce breakdown and treating pressures, improve treating rates, eliminate tortuosity, and minimize the risk of screen-outs.

WHAT UNDERBALANCE

Unlike traditional underbalanced perforating, the effectiveness of CONNEX? systems is not dependent on rock properties, wellbore or formation pressures. Debris is expelled independently from every tunnel, even across the most heterogeneous intervals. Systems designed to enhance underbalance are no longer required, making wireline perforating an affordable and effective solution in most cases.

NO RISK… ALL REWARD

CONNEX? products deploy in standard hardware. Gun performance and wellbore integrity are unaffected. Penetration into stressed rock is equivalent to GEODynamics’ industry-leading RAZOR charges.
