Rotork IQ3 intelligent multi-turn electric actuators have been specified for use in solar powered control stations for water gathering pipelines in the U.S.
Located in the oilfields of West Texas and New Mexico, the intelligent systems allow for the remote operation of single-stage isolation and modulating valves to control the flow of produced water in a high-pressure pipeline network. To assist with the water treatment operation, automated valve technology is needed to control flow in the water gathering pipelines, which can often run for miles in areas with no mains power to activate the valves.
The customer wanted valves and actuators to be installed every five miles in areas which were off the grid, so a solution combining individual solar panels with control stations and Rotork IQ3 actuators was devised. Each control station includes an IQ3 actuator to control either a 12 “ or 16 “ ball valve and each assembly is fitted with solar panels to power either a 24, 48 or 120 VDC motor.
Rotork Site Services worked to assemble the solar panel then installed and configured the systems in the field.
The self-contained solar power stations offer an efficient and economical way of powering the control stations, while also preventing harm to the environment and cutting installation costs by removing the need to dig up land in order to install power lines along the length of the pipeline.
The robust solar system provides power for programmable logic controllers (PLCs), as well as the Rotork IQ3 electric valve actuators, to transport contaminants from fracturing sites to water gathering and disposal facilities. The system programme includes a feature that provides a low-voltage alarm to alert pipeline operators if power from the solar system has dropped below the required level for valve operation.
Rotork’s IQ3 actuators include a patented absolute encoder to provide continuous tracking at all times. Even in the event of a power loss, the actuator’s graphical interface, remote indication and datalogger are all maintained and accessible.
The use of solar power in industrial valve automation stretches back several decades but technological improvements in efficiency and storage means the technology has become a reliable and practical alternative for sites in isolated areas.

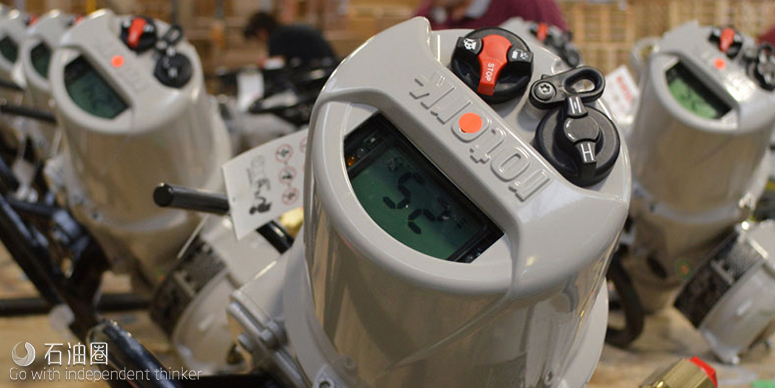

The 3rd Generation IQ Intelligent Actuator
For 60 years Rotork has used innovation for designing reliable, flexible and robust valve actuators and control systems. Continuing our ethos of evolving design, the next generation IQ multi-turn and IQT part-turn actuators are now available. Reliability standards have been set even higher, it is simpler to commission and use and is unrivalled in its ability to provide valve and process control operational data.
With the revolutionary dual stacked display, information about your plant and process is available at your fingertips, allowing unparalleled data analysis of the condition and operational status of the valve; data analysis that enables accurate asset management of your plant. Rotork innovation at its best.
Next-generation advances:
- New intuitive user interface
- Advanced dual stacked display with configurable?datalogger?functionality
- Toughened glass screen plus optional environmental shield
- Setting tool with secured Bluetooth? connection
- High reliability, solid-state controls (multi-turn variants)
- Reduced internal wiring and connections
- Simplified torque sensor (multi-turn variants)
- Simple and robust absolute position sensor with high reliability and accuracy
- New thrust base design (multi-turn variants)
- Separable gearbox/thrust base across the range (multi-turn variants)
- Advanced real-time status reporting
- IQ range actuators can be supplied with a fully engineered plug and socket interface to provide fast connection and disconnection in the field
Powerful Features:
- 3-phase, direct current and 1-phase variants
- Watertight and hazardous area enclosures
- Double-sealing
- Handwheels for emergency and ease-of-use operation
- Advanced, multilingual display for status and setup
- Detailed data logging
- Setting and data capture using the supplied Rotork Bluetooth? Setting Tool Pro
- InSight2 PC software for valve performance analysis
- Highly intuitive user interface
- Comprehensive control and flexibility
- Direct drive part-turn (IQT, IQTM, IQT Failsafe, IQTF, and IQTFM)
Mechanical Updates:
- New smooth rim handwheel design
- New Hand/Auto lever design
- Two stage Hand/Auto engagement
- New “cartridge” style thrust base (multi-turn variants)
- Optional anti-back drive device (multi-turn variants)
