Emerson, in partnership with Metrol, a leader in battery-powered wireless well monitoring, has launched the Intelligent Multistage Completion Network – an integrated upper and lower completions downhole solution that communicates wirelessly with instruments at the reservoir sandface, the physical interface between the formation and the wellbore. This is enabled by a new wireless interface that generates crucial zonal flow information and sandface monitoring in the lower completion.
The new solution builds on Emerson’s years of experience in advanced permanent downhole monitoring and its close collaboration with Metrol.
“For many operators, the sandface and lower completion have simply been considered ‘off limits’ for acquiring accurate multi-zone information’ – too much risk, too costly and too complex,” said Geir Aanensen, vice president and general manager for Emerson’s flow solutions business.
“With our new wireless interface that enables connection to sandface data and flow control instruments from Metrol, operators will have unrivaled insights into the reservoir’s flow characteristics, access to valuable data and the ability to optimize reservoir production management. Combining Roxar and Metrol technologies will ensure highly efficient well and reservoir management, while providing a life-of-well, permanent hybrid silicon on insulator (HS) gauge installation.”
The Intelligent Multistage Completion Network builds on the capabilities of the existing Integrated Downhole Network that has been installed in wells worldwide and uses wireless telemetry to enable communication with sensors and controls located at the reservoir. Key benefits of the new downhole reservoir network solution include:
- A permanent gauge installation providing life-of-well data and cost-effective, low risk access to diagnostics data from the reservoir section of a well. The result is a compelling alternative to traditional production logging, wireline, coil tubing and other cable-based downhole solutions that have accompanying risk, costs and logistics.
- The ability to retrieve pressure and temperature data from multiple reservoir sands in a pilot hole – something that was previously not possible – leading to an improved understanding of reservoir connectivity and drainage.
- Online zonal flow data measurements without having to reduce flow rates and without the limitations of intervention-based systems, with the added ability to wirelessly operate flow control valves in multiple locations in response to zonal data acquisition.
- The fast and seamless installation of the interface to the network with no additional penetrators (wet mates, connectors, tubing for fiber, etc.) to go through the defined well barriers (thereby significantly reducing risk) and no additional hardware requirements to the topside or subsea control system. Instead, operators have a single standard interface card providing access to all the in-well instrumentation.

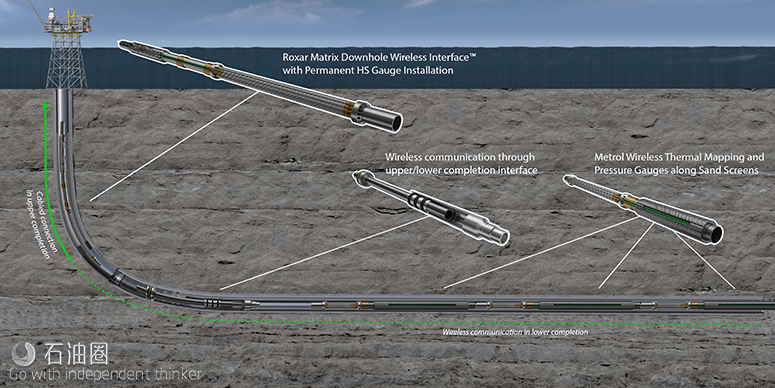

How It Works
Roxar Integrated Downhole Network
The Intelligent Multistage Completion Network? builds on the capabilities of the existing Roxar Integrated Downhole Network that has been installed in wells worldwide. It includes a permanent downhole gauge installation in the upper completion for life of well data and uses field proven wireless telemetry technologies to enable communication with Metrol sensors and controls located in a lower completion, sand screen or other remote well location.
Roxar Matrix Downhole Wireless Interface?
The Roxar Matrix Downhole Wireless Interface? enables connection to sandface data and flow control instruments from Metrol. This information provides operators with valuable insights into the reservoir flow profile and characteristics.
Metrol Wireless Instruments
The Metrol Wireless Instruments are located in a lower completion, sand screen or other remote well location. Examples are pressure gauges, temperature arrays and flow control valves.
MATRIX? is an interface that combines the intelligence and reliability of two down hole data acquisition specialists.
MATRIX? enables a permanent gauge to be matched to Metrol’s blend of wireless? technologies and gives the client the ability to manage the reservoir efficiently whilst? supplying a life of well pressure gauge system.
The upper completion component is supplied by Emerson, the provider of the Roxar cabled permanent downhole gauges.
The lower completion component of MATRIX? is supplied by Metrol, leaders in downhole wireless telemetry, measuring and controlling flow directly at the sandface.
Understanding and managing multi-zonal contribution is possible using Metrol’s suite of tools without the need for packer penetrations or wired connectors.
